Two 178Te Transformers delivered to Biggleswade Substation

Collett Deliver 178Te Supergrid Transformers

Collett have successfully delivered two 178Te Transformers in 7 days from Tilbury Dock to Biggleswade Substation

Working on behalf of Hyundai Electric UK, in conjunction with National Grid, Collett has successfully delivered two 178Te supergrid transformers from Tilbury Dock in Essex to National Grid’s Biggleswade substation in Bedfordshire.

Each transformer measured 9.0 metres long, 5.4 metres wide and 5.0 metres in height; combining with the trailer for a total vehicle length of 66 metres. Collett utilised their 250Te capacity Goldhofer girder bridge trailer to facilitate the movement of the two transformers to their final destination. The entire project took place over two weeks, with the transport occurring on two consecutive Sundays.

Comprehensive planning prior to the transport

Prior to the transport, Collett’s Projects and Consulting Departments provided comprehensive planning and site visits to strategise the route.

This included a comprehensive route survey, as well as swept path analysis reports, identifying obstructing street furniture that would require temporary removal. Collett liaised with both Cambridgeshire County Council and Central Bedfordshire Council to ensure that the movement would be successful.

With Collett having undertaken all ship chartering operations, the two transformers arrived at Tilbury Dock. Here, the first transformer was discharged from the vessel onto the girder bridge trailer where it was lowered onto stools in a secure storage area to await future transport.

The second of the two transformers was discharged directly onto the girder bridge trailer, in preparation for the first delivery to commence.

With all preparation in place, Collett began the transport.

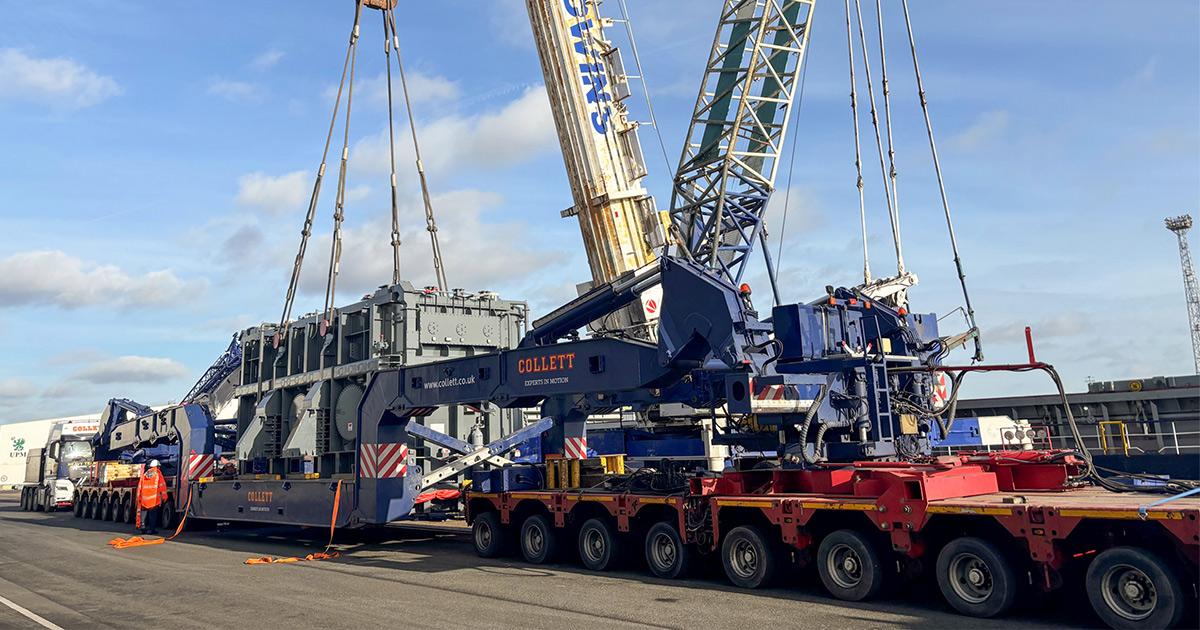

178Te Transformers Discharged By Crane At Tilbury Dock

76-mile route in approximately 8 hours

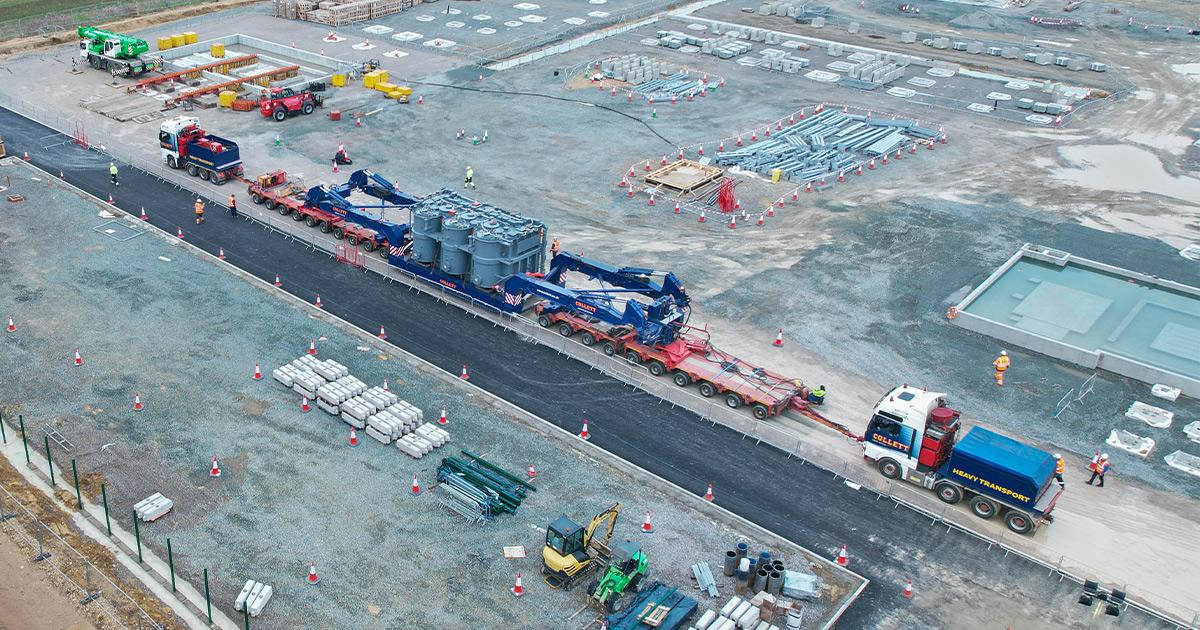

Collett Offloaded The 178Te Transformer On Site

Departing from Tilbury Dock, Collett travelled along the 76-mile route in approximately 8 hours.

The load was accompanied by Collett’s in-house escort vehicles as well as police escorts; initially being escorted by Essex police from Tilbury Dock, then handed over to Cambridgeshire Police at the county border.

Upon arrival at the site, Collett was responsible for offloading the transformer. Having previously undertaken detailed planning, including ground bearing pressure calculations, method statements, risk assessments and installation drawings, Collett’s Heavy Lift Team utilised their heavy duty jacking and skidding equipment to skid the 178Te transformer directly from the trailer onto the final plinth.

With one of the two transformers successfully delivered, the girder bridge was de-mobilised and returned back to Tilbury Dock to load the second transformer. Following the same route, the transformer was delivered to the site where it was once again offloaded onto the final plinth.

The 400kV substation includes two transformers that are needed to power the local area. The substation will initially boost power capacity by 80mW, allowing for future residential and employment growth in the Biggleswade area.
